Machine Tool Parts

Machine tool castings are bought for vibration damping and dimensional stability, not for looks. That means controlled chemistry, a slow cooling practice and a proper stress-relief cycle before the finishing cuts.

We pour beds, columns, cross beams, rams, slides and connecting parts in HT250 and HT300, and in ductile iron where higher strength is needed — then machine guide faces and mounting pads to the drawing. Parts ship bare, in grey anti-rust primer, or stretch-wrapped on pallets.

Machine beds and lathe beds
Columns and uprights
Cross beams and rams
Slides, saddles and connecting parts
Worktable and fixture blanks

Get a Quote WhatsApp

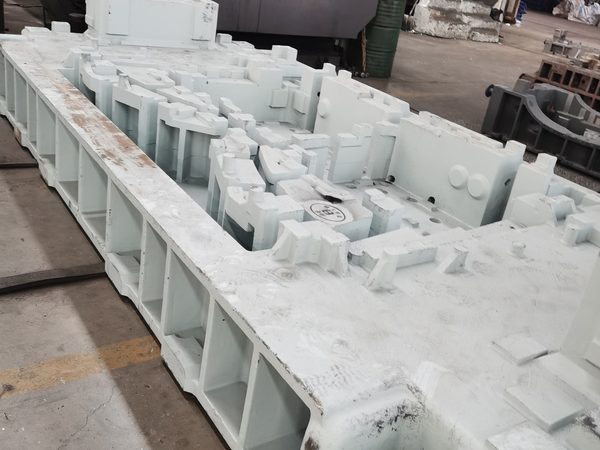

Machine beds and base castings

Long, heavily ribbed castings where the guide-way faces and the internal cross ribs decide rigidity.

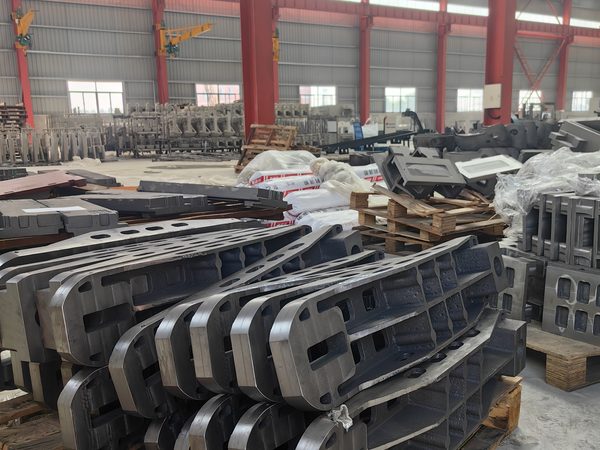

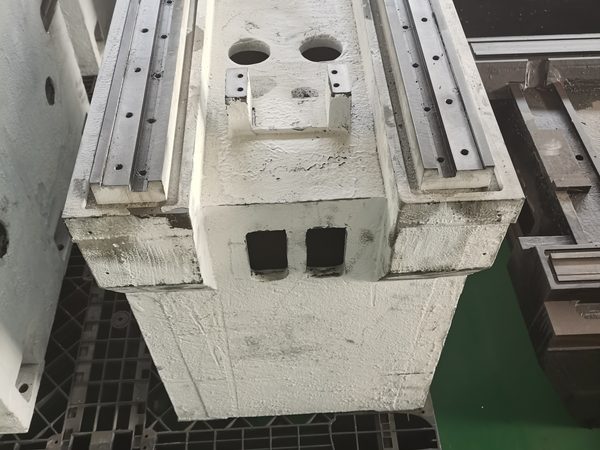

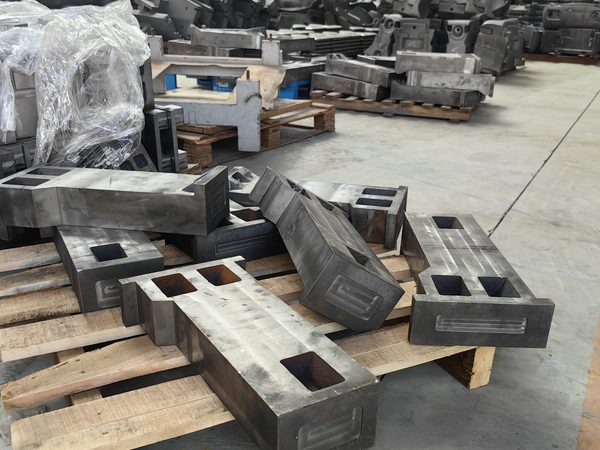

Columns, cross beams and slides

Prismatic parts with long guide faces and rectangular openings, stacked and palletised for machining.

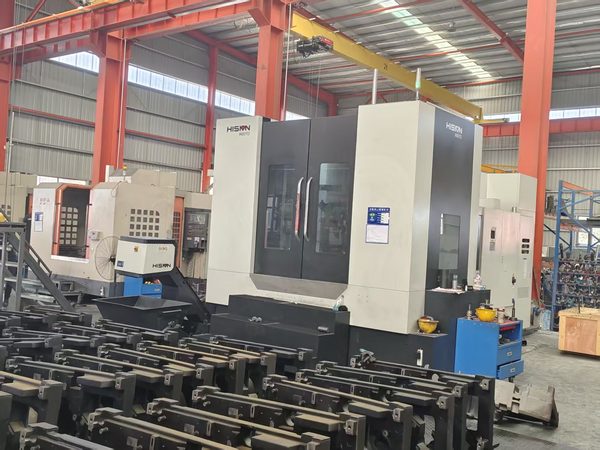

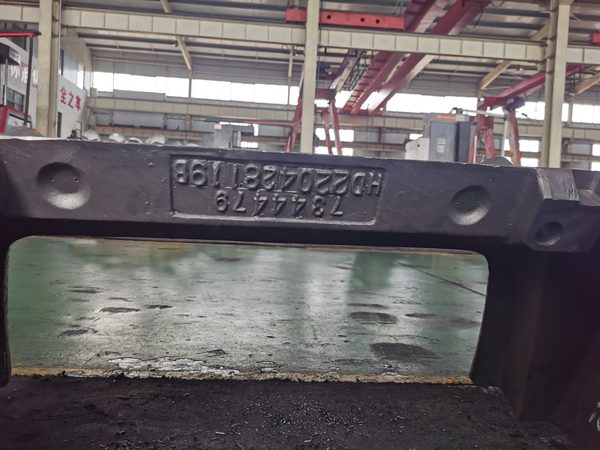

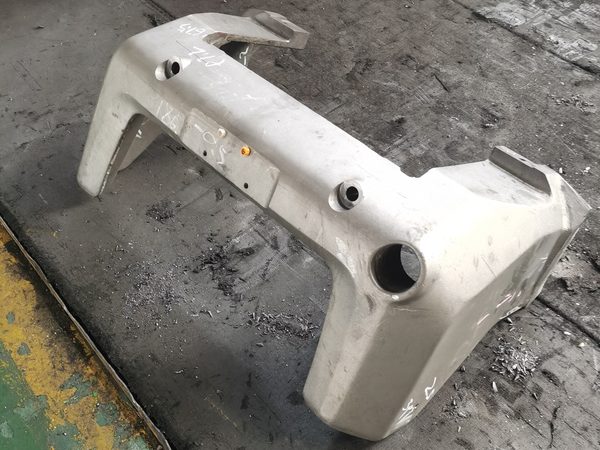

Machined and connecting parts

H-shaped and plate-type parts machined to drawing, with inspection marks recorded on the face.

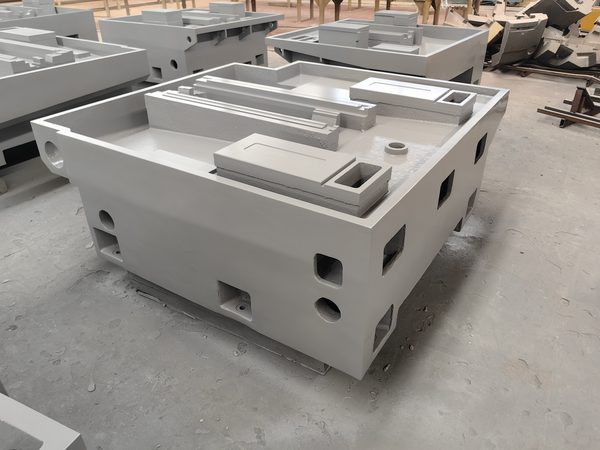

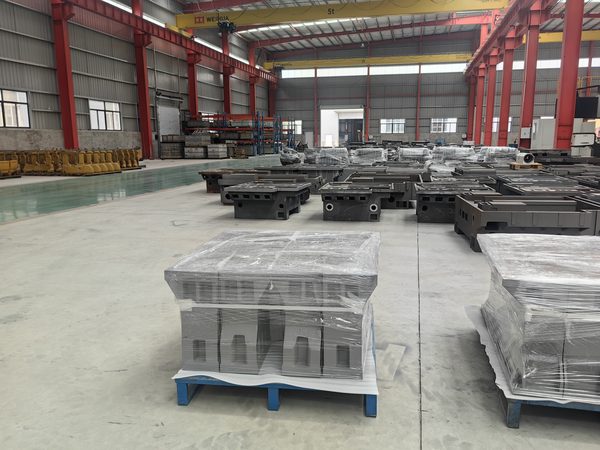

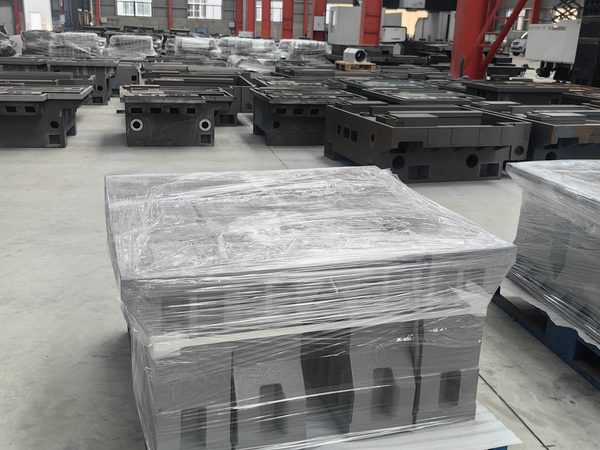

Finishing and packing

Grey anti-rust primer, then stretch film and pallets that survive sea freight.

Typical parts

Machine beds and lathe beds
Columns and uprights
Cross beams and rams
Slides, saddles and connecting parts
Worktable and fixture blanks
H-shaped and plate-type machined parts
Spindle housings and headstocks

Specifications

Materials: Grey iron HT250 / HT300; ductile iron QT500-7 / QT600-3
Unit weight: 5 – 2,000 kg
Hardness: Typically HB170 – HB240, agreed per part
Heat treatment: Stress relief before finish machining as standard practice for this category
Machining: Guide-way and pad milling, boring, drilling
Packing: Pallets with stretch-film wrapping; rust-preventive primer on request
Minimum order: 5 – 20 pieces depending on size
