Pump & Valve Housings and Bodies
Valve bodies and pump housings are the parts where a foundry shows whether it understands pressure. Wall thickness has to be uniform enough that the casting passes its test, flange faces have to be parallel to the bore, and the seat has to be machinable without opening up a blowhole.
We cast Y-type and multi-branch valve bodies, box-type bodies, butterfly valve bodies, Roots pump and compressor casings, and pipe fittings — then machine the flange faces, bores and 8-shaped twin chambers in the same plant.
- Y-type multi-port valve bodies
- Box-type valve bodies with double bores
- Large multi-branch and multi-chamber bodies
- Butterfly valve bodies, including gear-rim designs
- Roots pump and compressor casings
Valve bodies and cocks

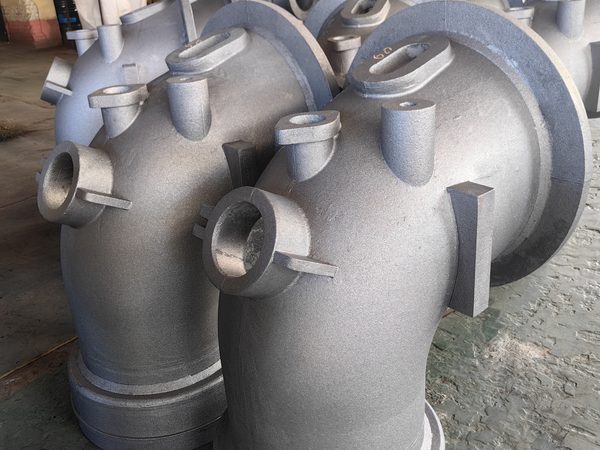

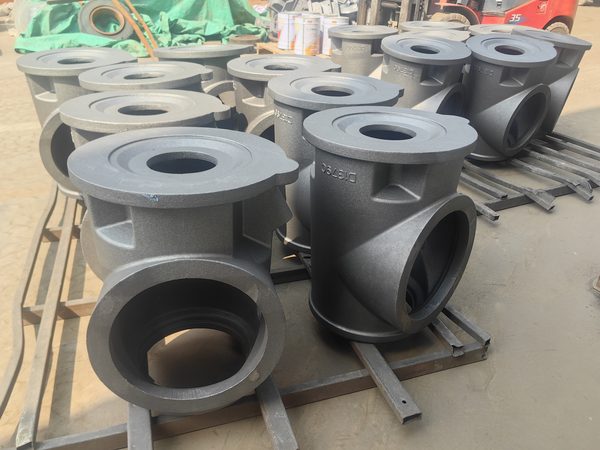

Two large Y-type multi-port valve bodies side by side, black-painted Y-type bodies, large multi-branch bodies in the raw state, and a shot-blasted Y-type tee body showing the cast-in size marking.
Large-diameter and coated bodies
Large-diameter flanged bodies banded for shipment, and machined bodies in yellow anti-rust primer.
Pump and blower casings

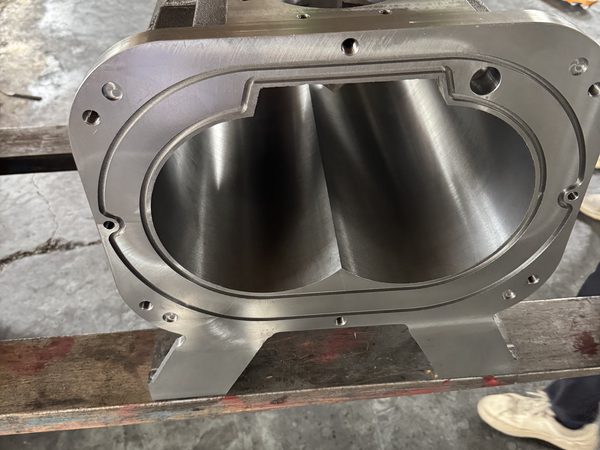

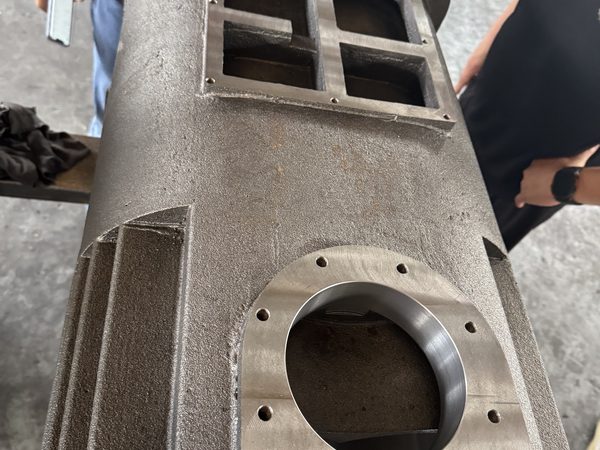

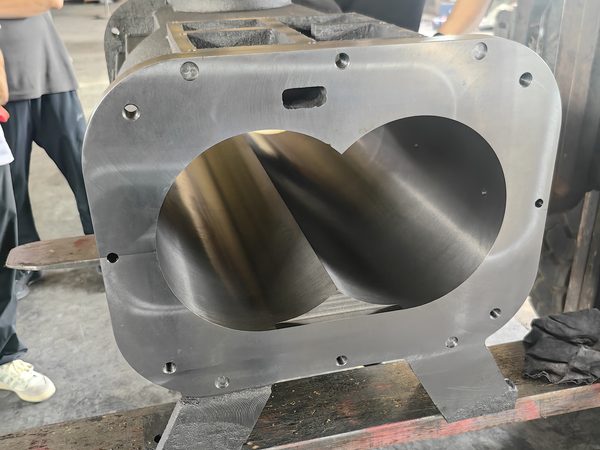

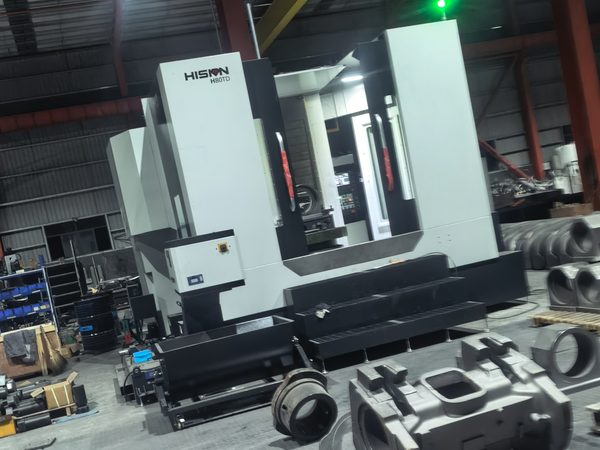

Roots pump and compressor housings with finish-bored 8-shaped twin chambers, and a HISKM KH75 machining centre with valve bodies set up on the table.
Butterfly valve bodies and pipe fittings

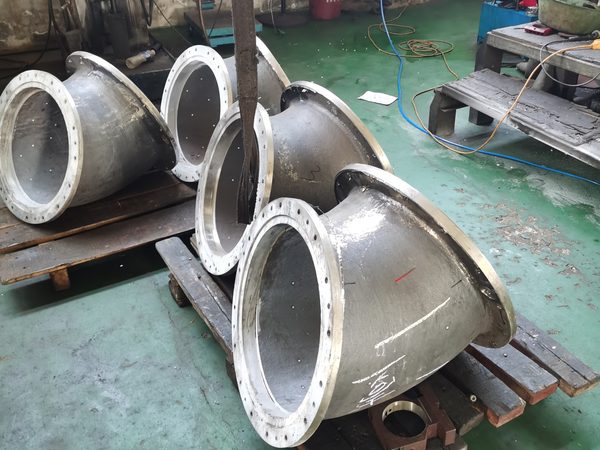

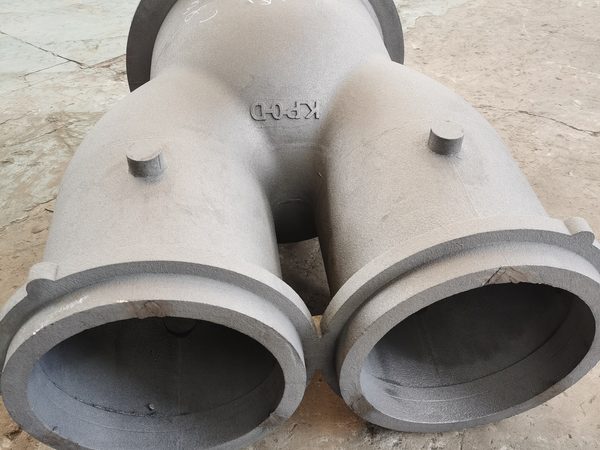

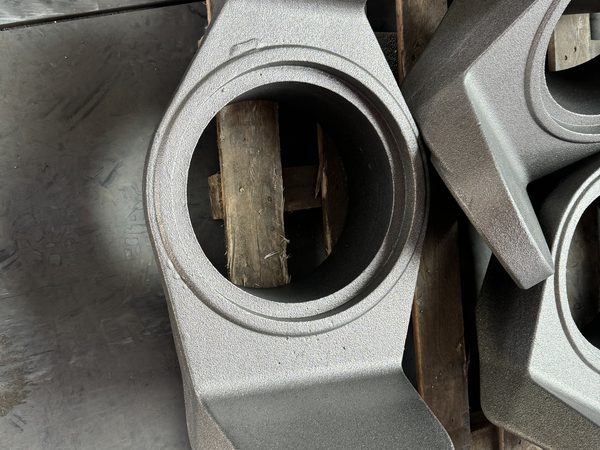

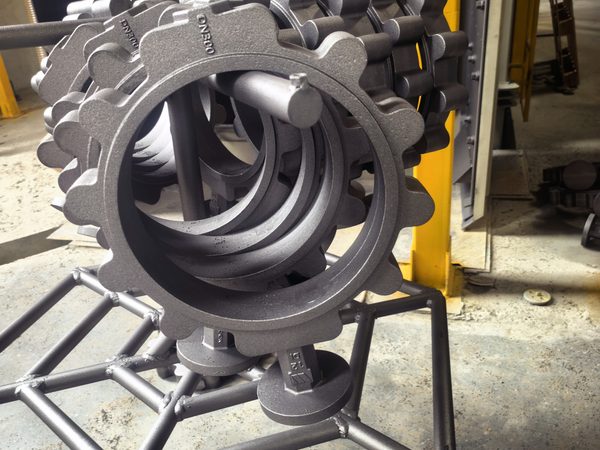

DN300 gear-rim butterfly valve bodies as finished parts, butterfly body blanks with the double-ear profile, Y-branch tee fittings and pallets of flanged elbow fittings.
Typical parts
- Y-type multi-port valve bodies
- Box-type valve bodies with double bores
- Large multi-branch and multi-chamber bodies
- Butterfly valve bodies, including gear-rim designs
- Roots pump and compressor casings
- Pump bodies and valve casings
- Y-branch tees and flanged pipe fittings
- Valve cover plates and mounting plates
Specifications
- Materials
- Grey iron HT200 / HT250 / HT300; ductile iron QT450-10 / QT500-7
- Unit weight
- 2 – 800 kg in regular production; larger bodies quoted case by case
- Casting process
- Lost-foam moulding with vacuum-assisted dry sand; resin-sand option through group plants
- Machining
- Flange facing, bolt-hole drilling, bore and seat machining, twin-chamber (8-shaped) boring, tapping
- Finish
- Shot blasting, then primer or top coat in red, yellow, grey or RAL colours
- Standards
- EN 1092-2, ANSI B16.5 / B16.42, JIS B2239, GB/T 17241 on request
- Documents
- Material certificate with heat number, dimensional report; pressure test record on request
- Minimum order
- 30 – 50 pieces for an existing pattern; tooling carried on the first order for a new part
Values above are our regular range; the drawing and technical specification agreed with you take precedence.
