Incoming materials
Charge materials and alloys are verified on arrival; scrap returns are sorted by grade to keep chemistry predictable.
Quality system
Our management system is certified to GB/T 19001-2016 / ISO 9001:2015. The certificate covers the design and manufacture of castings and machined parts, and is currently valid.
- GB/T 19001-2016 / ISO 9001:2015
- Covering design and manufacture of castings and machined parts
- Currently valid; copy available on request
Control points
Pattern and coating

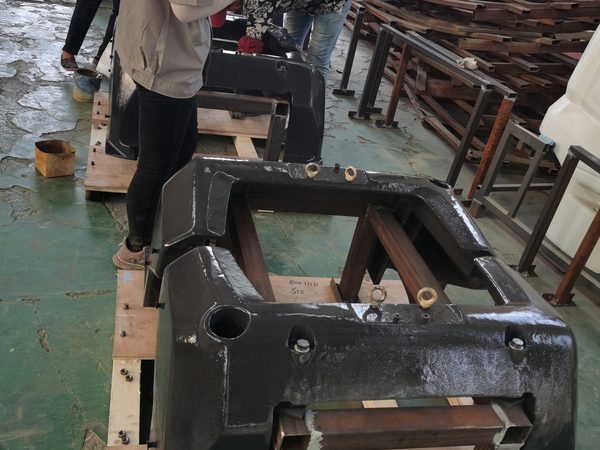

Foam patterns are measured and assembled against the tool drawing; coating thickness and drying are controlled before moulding.
Chemistry
Every heat is checked on the optical emission spectrometer, with the result recorded against the heat number.
Pouring
Pouring temperature and time are logged per mould; inoculation is controlled for ductile iron.
Dimensional & mechanical

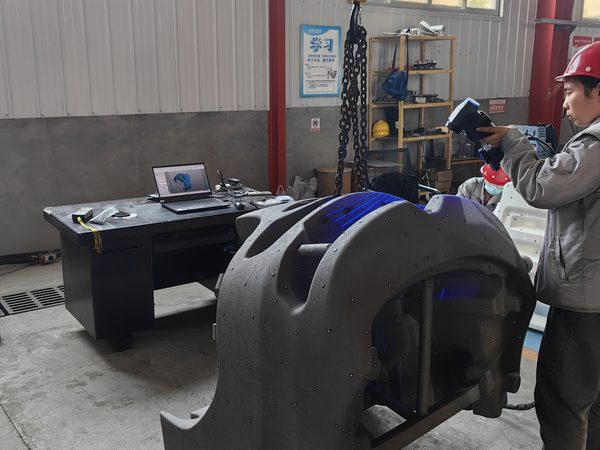

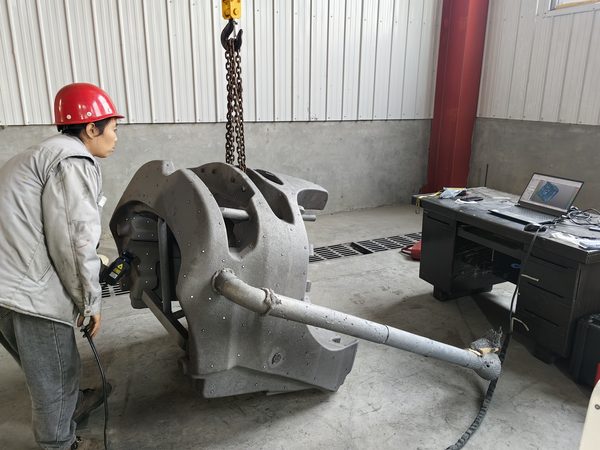

3D scanning and gauge checks for machined features; hardness on every batch and tensile or impact tests where the drawing calls for them.
Final & documentation

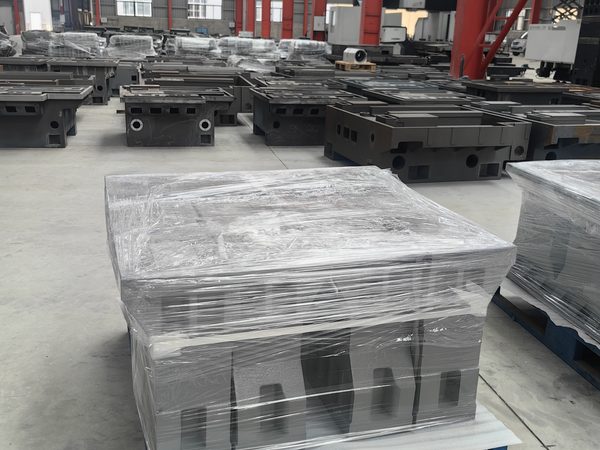

Surface, finish and marking are checked at packing, and a material certificate accompanies every shipment.
Testing equipment
Equipment list is indicative of current capability; the on-site register is available for verification during supplier audits.
- Optical emission spectrometer

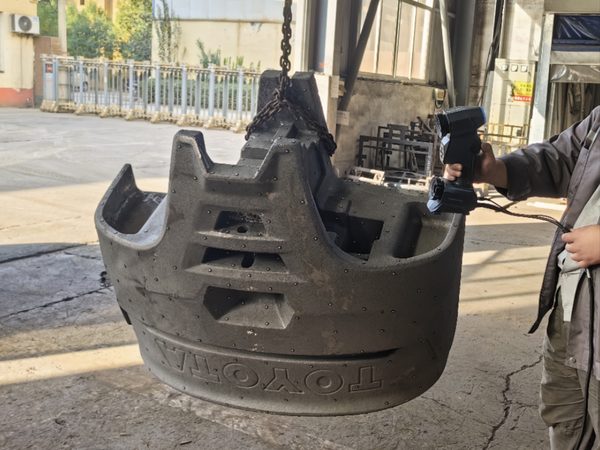

- Handheld 3D laser scanning for pattern and part verification
- Hardness testers (Brinell / portable)
- Non-destructive testing (dye penetrant / ultrasonic)
- Tensile testing machine
- Low-temperature impact testing
- Metallographic and laboratory facilities
Standards we work to
- Material grades
- GB/T 9439 (grey iron), GB/T 1348 (ductile iron), equivalent ISO and ASTM grades on request
- Castings
- GB/T 6414 dimensional tolerances; ISO 8062 for general tolerances
- Machining
- General tolerances to GB/T 1804-m unless the drawing specifies tighter
- Flanges
- EN 1092, ANSI B16.5, JIS and GB flange standards
- Documents
- Material certificate, dimensional report, hardness record, packing list
